### （1）查询可用docker镜像

```bash
docker search gitlab
```
如下：

```bash
[root@iZbp1flzt6x7pxmxfhmxeeZ ~]# docker search gitlab
NAME                                         DESCRIPTION                                     STARS     OFFICIAL   AUTOMATED
gitlab/gitlab-ce                             GitLab Community Edition docker image based …   3439                 [OK]
sameersbn/gitlab                             Dockerfile to build a GitLab image for the D…   1178                 [OK]
gitlab/gitlab-runner                         GitLab CI Multi Runner used to fetch and run…   741                  [OK]
gitlab/gitlab-ee                             GitLab Enterprise Edition docker image based…   283
twang2218/gitlab-ce-zh                       汉化的 GitLab 社区版 Docker Image                     249                  [OK]
jangrewe/gitlab-ci-android                   GitLab CI image for building Android apps       59                   [OK]
edbizarro/gitlab-ci-pipeline-php             Docker images for build and test PHP applica…   38
ulm0/gitlab                                  GitLab Docker image for ARM                     36
gitlab/gitlab-runner-helper                                                                  34
klud/gitlab-runner                           GitLab Runner for ARM devices                   27
centurylink/gitlab                           This image uses the image from sameersbn / g…   26                   [OK]
ciricihq/gitlab-sonar-scanner                Gitlab Docker container to run sonar-scanner…   16                   [OK]
gitlab/gitlab-ce-qa                          GitLab QA has a test suite that allows end-t…   6
timoschwarzer/gitlab-monitor                 A browser-based monitor dashboard for GitLab…   4                    [OK]
sgillespie/gitlab-runner                     A Dockerized GitLab Runner that automaticall…   3                    [OK]
samcontesse/gitlab-merge-request-resource    A concourse resource to check for new merge …   3                    [OK]
mastertinner/gitlab-merge-request-resource   A concourse resource to check for new merge …   2                    [OK]
boldcommerce/gitlab-merge-request-resource   Reverted build of Swisscom's resource until …   1                    [OK]
stanfordlegion/gitlab-ci                     An image for Gitlab CI.                         1                    [OK]
lorands/gitlab-merge-request-resource        This is a fork of swisscom/gitlab-merge-requ…   1                    [OK]
edtan1/gitlab-merge-request-resource         GitLab Merge Request resource for ConcourseCI   0                    [OK]
adamkl/gitlab-merge-request-resource         Customized with support for gitlab ssh on di…   0                    [OK]
gitlab/gitlab-ee-qa                          GitLab QA has a test suite that allows end-t…   0
mvisonneau/gitlab-ci-pipelines-exporter      Prometheus / OpenMetrics exporter for GitLab…   0                    [OK]
onaci/gitlab-runner                          auto-registering gitlab runner                  0
[root@iZbp1flzt6x7pxmxfhmxeeZ ~]#
```
### （2）下载镜像

```bash
docker pull gitlab/gitlab-ce
```
如下：

```bash
[root@iZbp1flzt6x7pxmxfhmxeeZ ~]# docker pull gitlab/gitlab-ce
Using default tag: latest
latest: Pulling from gitlab/gitlab-ce
7b1a6ab2e44d: Pull complete
923d8a5a90cb: Pull complete
c9c193ad3afb: Pull complete
ca54c9617521: Pull complete
5c6b771a3e5e: Pull complete
b4823ec4057e: Pull complete
35db6611258b: Pull complete
cd101cdba14c: Pull complete
Digest: sha256:a67074548979a08eba93445c37a5dab09e2a8e4f29b301ec5fc7a05607293121
Status: Downloaded newer image for gitlab/gitlab-ce:latest
docker.io/gitlab/gitlab-ce:latest
[root@iZbp1flzt6x7pxmxfhmxeeZ ~]#
```
##### （3）启动服务

```bash
docker run -d -p 10008:80 -p 10009:443 -p 10010:22 --restart always --name gitlab -v /docker/gitlab/etc/gitlab:/etc/gitlab -v /docker/gitlab/var/log/gitlab:/var/log/gitlab -v /docker/gitlab/var/opt/gitlab:/var/opt/gitlab --privileged=true gitlab/gitlab-ce

```

### （4）修改gitlab.rb文件

```bash
vi /docker/gitlab/etc/gitlab/gitlab.rb
```
修改如下位置：

```bash
# 如果使用公有云且配置了域名了，可以直接设置为域名，如下
external_url 'http://gitlab.redrose2100.com'
# 如果没有域名，则直接使用宿主机的ip，如下
external_url 'http://172.22.27.162'
```

```bash
# 同样如果有域名，这里也可以直接使用域名
gitlab_rails['gitlab_ssh_host'] =  'gitlab.redrosee2100.com'
# 同样如果没有域名，则直接使用宿主机的ip地址
gitlab_rails['gitlab_ssh_host'] = '172.22.27.162'
```

```bash
# 端口为启动docker时映射的ssh端口
gitlab_rails['gitlab_shell_ssh_port'] =10010
```

```bash
# 设置时区为东八区，即北京时间
gitlab_rails['time_zone'] = 'Asia/Shanghai'
```

### （5）关于邮箱发邮件的配置如下

```bash
gitlab_rails['smtp_enable'] = true
gitlab_rails['smtp_address'] = "smtp.163.com"   # 邮箱服务器
gitlab_rails['smtp_port'] = 465    # 邮箱服务对应的端口号
gitlab_rails['smtp_user_name'] = "hitredrose@163.com"   # 发件箱的邮箱地址
gitlab_rails['smtp_password'] = "xxxxxxxxxxx"      # 发件箱对应的授权码，注意不是登录密码，是授权码
gitlab_rails['smtp_domain'] = "163.com"
gitlab_rails['smtp_authentication'] = "login"
gitlab_rails['smtp_enable_starttls_auto'] = true
gitlab_rails['smtp_tls'] = true
gitlab_rails['gitlab_email_enabled'] = true
gitlab_rails['gitlab_email_from'] = 'hitredrose@163.com'     # 发件箱地址
gitlab_rails['gitlab_email_display_name'] = 'gitlab.redrose2100.com'    # 显示名称
gitlab_rails['gitlab_email_reply_to'] = 'noreply@example.com'     # 提示不要回复
```

### （6） 重启docker
```bash
docker restart gitlab
```
### （7）进入docker容器里

```bash
docker exec -it gitlab bash
```

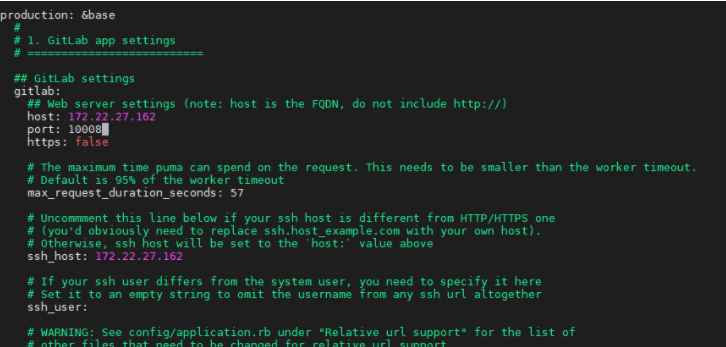

### （8）修改端口号

```bash
vi /opt/gitlab/embedded/service/gitlab-rails/config/gitlab.yml
```
如下，将端口修改为映射后的端口
![](/static/upload/20220516_062144.png)

### （9）重启gitlab
直接在docker中执行
```bash
gitlab-ctl restart
```
如：

```bash
root@cd6a79be7773:/etc/gitlab# gitlab-ctl restart
ok: run: alertmanager: (pid 4567) 1s
ok: run: gitaly: (pid 4582) 1s
ok: run: gitlab-exporter: (pid 4598) 1s
ok: run: gitlab-workhorse: (pid 4603) 1s
ok: run: grafana: (pid 4610) 1s
ok: run: logrotate: (pid 4619) 1s
ok: run: nginx: (pid 4631) 1s
ok: run: postgres-exporter: (pid 4636) 1s
ok: run: postgresql: (pid 4645) 1s
ok: run: prometheus: (pid 4653) 0s
ok: run: puma: (pid 4670) 1s
ok: run: redis: (pid 4679) 0s
ok: run: redis-exporter: (pid 4689) 1s
ok: run: sidekiq: (pid 4697) 1s
ok: run: sshd: (pid 4703) 1s
root@cd6a79be7773:/etc/gitlab
```

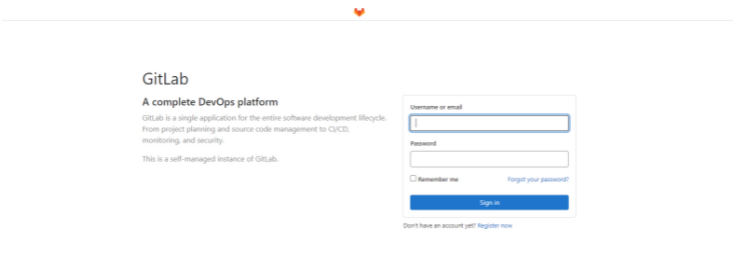

### （10）在浏览器打开 ip：端口号即可访问
这里需要注意，如果使用的是阿里云，需要配置安全组放开端口，如果使用二级域名，同样需要配置Nginx代理进行解析，
![](/static/upload/20220516_062214.png)

### （11）查看root默认密码

```bash
cat /docker/gitlab/etc/gitlab/initial_root_password
```
如：

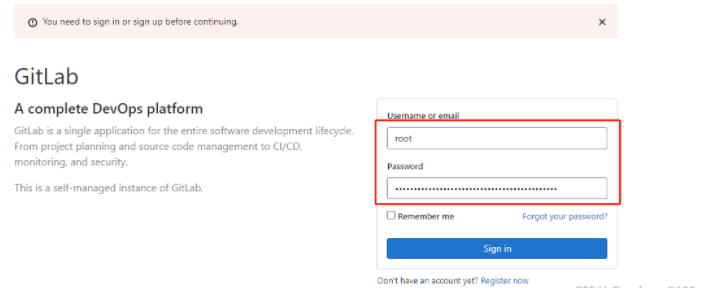

### （12）使用root用户名以及上述查询到的密码登录
![](/static/upload/20220516_062242.png)

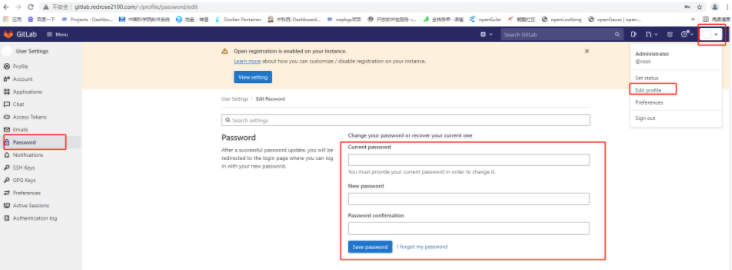

### （13）登录后依次点击【头像】-【Edit profile】-【password】，然后修改密码
![](/static/upload/20220516_062308.png)

### （14）至此，gitlab已经安装完成，并已修改密码
